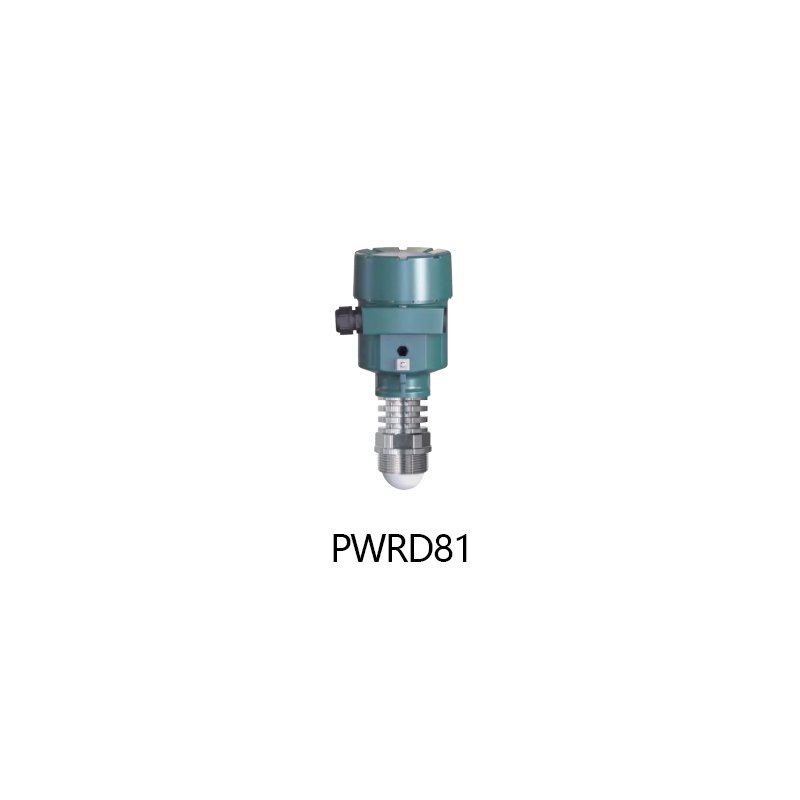

PWRD81

Features: Threaded integrated lens antenna, Bluetooth function, easy installation, high precision.

Should be used: Measurement of liquid level in general liquid storage tanks, such as chemical

industry, smelting.

Range: 10m/20m/35m/85m/120m

Accuracy: ±1mm

Process connection: Thread/Flange

Process temperature: -40~300 °C

Process pressure: – 0.1~4.0 MPa

Frequency: 80GHz

Signal output: 4~20mA/HART 24V DC 2-wire /4-wire system;

4~20mA/HART 220V AC 4-wire system；

RS485/Modbus

Bluetooth function: Yes/No

Explosion proof grade: Exia IIC T6 Ga/Exd IIC T6 Gb

Protection rating: Plastic IP67； Aluminum IP68

Can be customized according to needs
